Signal Booster Oscillation: The Hidden Threat to Your Public Safety DAS

ByTrapmode81

When emergency responders enter your building during a crisis, reliable two-way radio communication is not merely a convenience: it is an absolute lifeline. For building owners, facility managers, and commercial developers, deploying a Public Safety Distributed Antenna Systems (DAS) and Emergency Responder Communication Enhancement Systems (ERCES) is standard procedure to satisfy local fire codes and secure a Certificate of Occupancy. However, beneath the surface of a seemingly operational system lies a silent, destructive phenomenon capable of crippling public safety networks: signal booster oscillation.

At Global Network LLC, Atlanta's premier DAS and ERCES specialists, we frequently encounter facility operators who assume that once a Bi-Directional Amplifier (BDA) is installed, compliance is permanently locked in. Unfortunately, improper engineering, environmental changes, or degraded donor-to-antenna isolation can trigger severe oscillation. Understanding this hidden threat, its rigorous regulatory framework, and its strict prevention requirements is vital for maintaining life-safety compliance.

What is Signal Booster Oscillation and Why Does It Occur?

In technical terms, oscillation is an uncontrolled feedback loop: essentially the radio-frequency (RF) equivalent of the piercing acoustic squeal that occurs when a microphone gets too close to a speaker. In a Public Safety DAS/BDA architecture, a donor antenna on the roof captures signals from the macro cellular and public safety tower, feeding them into the BDA to be amplified and redistributed throughout the interior space via distributed antennas.

If the amplified downlink or uplink signals leak back into the donor antenna, or if the physical separation and electromagnetic isolation between the donor antenna and interior antennas are insufficient, the system begins feeding its own output back into its input.

Key Catalysts of Oscillation:

  • Inadequate Antenna Isolation: Failure to maintain the mandatory buffer (typically ≥ Signal Booster Gain + 20 dB) between donor and interior antennas.
  • Building Material Alterations: Subsequent architectural modifications, such as adding reflective glass, metal cladding, or adjacent structures that bounce RF signals directly back toward the donor antenna.
  • Improper Gain Configuration: Over-amplifying signals beyond the design threshold of the local jurisdiction's licensed frequencies.

When oscillation occurs, it generates high-level spurious emissions and broad-spectrum noise. This noise effectively jams the local public safety radio frequencies, blinding emergency dispatchers and drowning out critical communications for police officers and firefighters operating in the surrounding metropolitan area.

Regulatory Mandates: NFPA 1225 and IFC 510 Requirements

Regulatory bodies do not take RF interference lightly. The governing standards: specifically NFPA 1225 (which consolidates and supersedes previous NFPA 1221/1061 standards) and the International Fire Code (IFC 510): impose uncompromising mandates regarding oscillation detection, automatic control, and supervisory reporting.

Compliance is not optional; it is a legal prerequisite for occupancy and public safety liability mitigation.

State-of-the-art Bi-Directional Amplifier unit

The NFPA 1225 Protocol: Control Over Shutdown

Historically, older signal boosters reacted to feedback by simply shutting down entirely. While this protected the macro network from interference, it left buildings completely devoid of indoor emergency coverage during active crises: introducing an unacceptable life-safety hazard.

Modern NFPA 1225 compliance dictates a smarter, highly regulated sequence:

  1. Built-in Oscillation Detection & Control: Signal boosters must feature integrated circuitry capable of identifying instability instantly.
  2. Automatic Gain Reduction: Instead of powering down, the system must automatically reduce gain per filter to neutralize the oscillation while maintaining baseline coverage whenever possible.
  3. Mandatory Supervisory (Trouble) Signal: The moment oscillation is detected, the system must transmit a supervisory signal directly to the Fire Alarm Control Panel (FACP) and remote annunciator.
  4. Controlled Shutdown as a Last Resort: Only in the event of uncorrectable, persistent oscillation is complete system shutdown permitted, and this critical event must be immediately annunciated to the Authority Having Jurisdiction (AHJ).

The True Cost of Non-Compliance and System Instability

Failing to address oscillation risks severe legal, financial, and operational penalties. Local fire marshals and the FCC enforce strict enforcement actions against facilities causing harmful interference to public safety frequencies.

When you partner with Global Network LLC, our engineering methodology guarantees 0% Defects and 0% Missed Deadlines. We recognize that property safety requires absolute vigilance.

The Pillars of Our Engineering Guarantee:

  • Rigorous Commissioning & Acceptance Testing: Every installation undergoes rigorous frequency sweeping, signal level verification, and isolation testing to ensure complete immunity to feedback loops.
  • Advanced AGC/ALC Circuitry: We deploy Class A and Class B BDAs equipped with per-filter Automatic Gain Control (AGC) and Automatic Level Control (ALC) to dynamically stabilize signals.
  • Continuous Monitoring Integration: Seamlessly linking your ERCES into the building's fire alarm network to ensure instant notification of any supervisory trouble condition.

Proactive Engineering: How We Prevent Oscillation at the Source

Mitigating signal booster oscillation begins long before equipment is mounted on a wall. It requires meticulous pre-installation site surveys, sophisticated RF propagation modeling, and precise hardware selection.

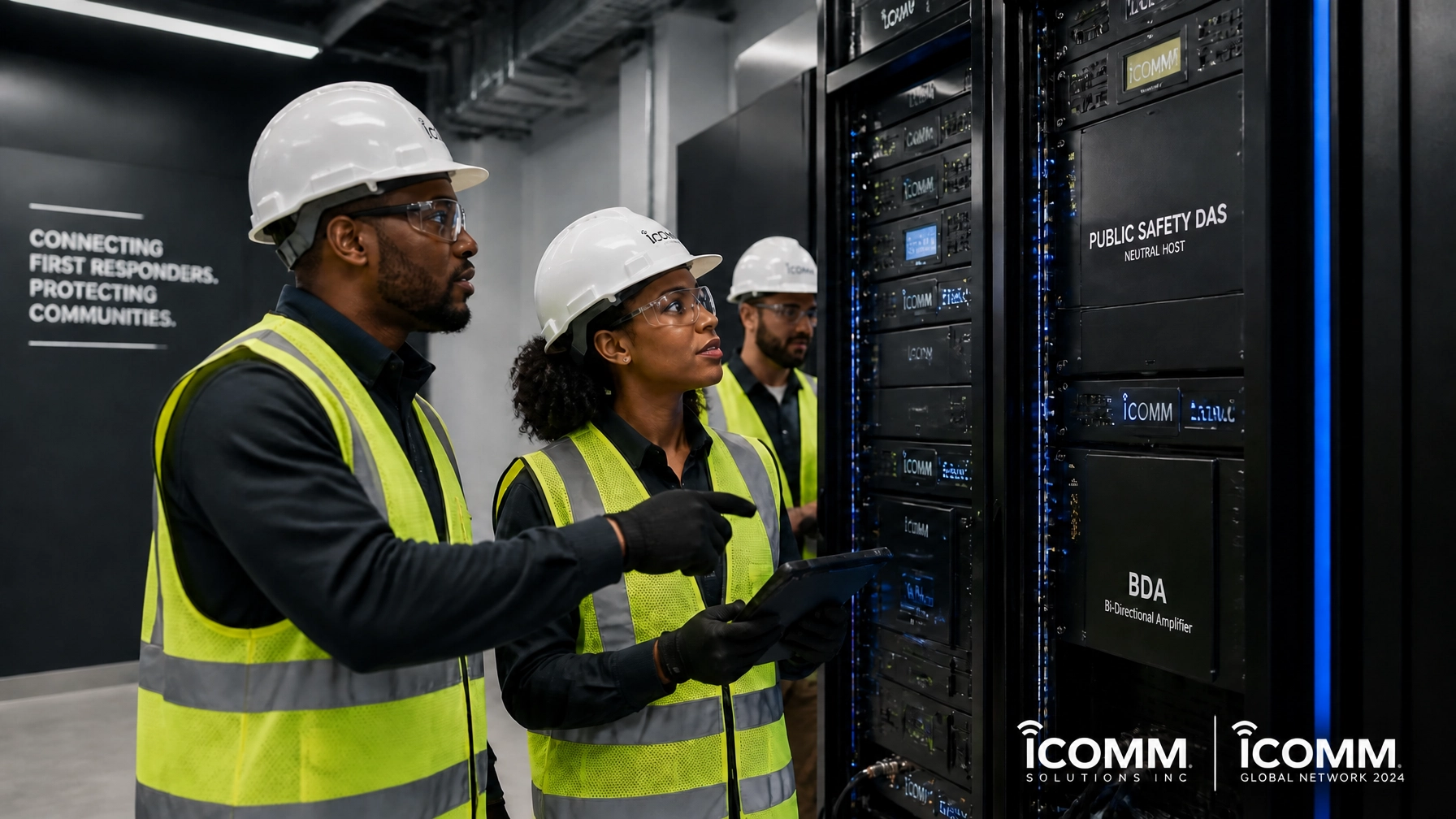

Professional technician performing technical inspection

When evaluating your property, our certified technicians analyze structural attenuation, donor tower geometries, and floor-by-floor signal propagation. By engineering sufficient spatial and polarization isolation between antennas, we eliminate the root causes of feedback before installation even begins. Furthermore, our systems incorporate advanced uplink squelch features, ensuring that inactive channels remain completely muted to prevent cumulative noise floors from destabilizing the public safety radio network.

At Global Network LLC, we pride ourselves on delivering robust, future-proof infrastructure designed to protect occupants and satisfy every local fire code mandate without compromise.

Secure Your Building's Compliance Today

Signal booster oscillation is a hidden hazard that can jeopardize your Certificate of Occupancy, invite hefty fines, and: most importantly: endanger first responders when it matters most. Do not leave your facility’s safety to chance.

Whether you require a new ERCES installation, annual compliance testing, or an immediate diagnostic review of an existing BDA system, our expert team is at the forefront of advancements in public safety technology.
